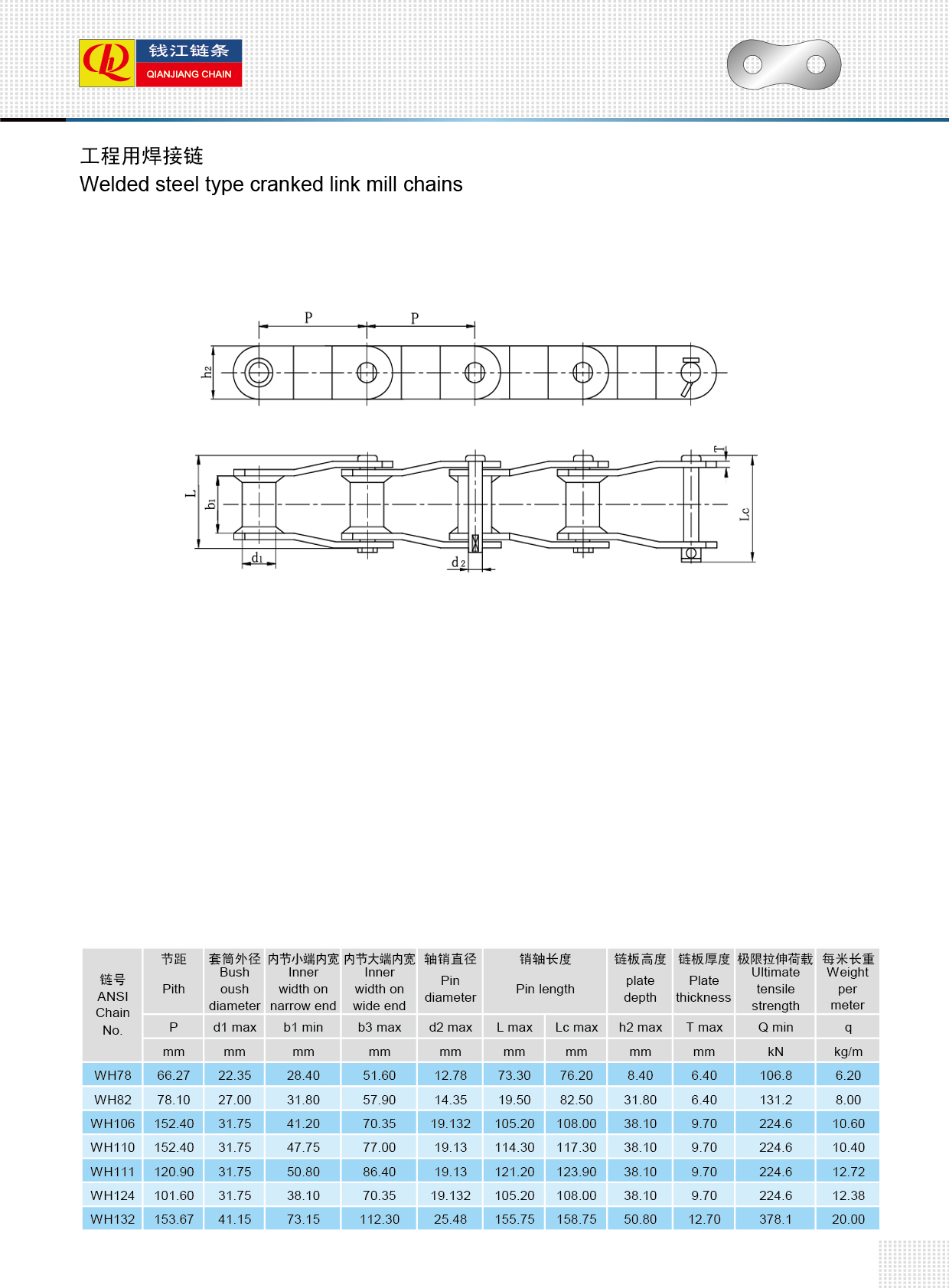

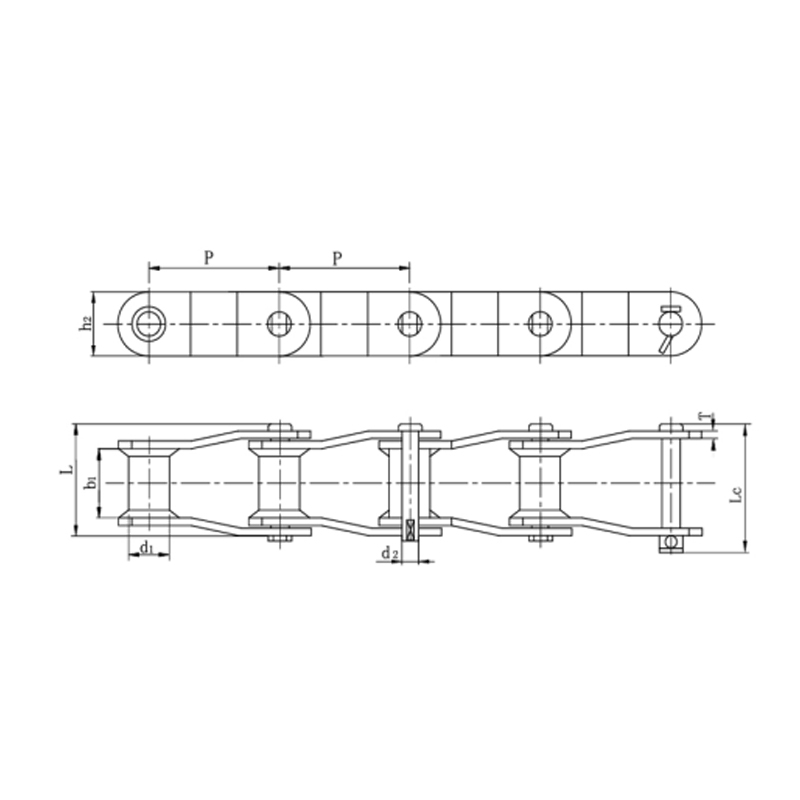

| ANSI 链号 | 节距 | 套筒外径 | 内节小端内宽 | 内节大端内宽 | 销轴直径 | 销轴长度 | 链板高度 | 链板厚度 | 极限拉伸荷载 | 每米长重 | |
| P | d1 max | b1 min | b3 max | d2 max | L max | Lc max | h2 max | T max | Q min | q | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | kN | kg/m | |
| WH78 | 66.27 | 22.35 | 28.40 | 51.60 | 12.78 | 73.30 | 76.20 | 8.40 | 6.40 | 106.8 | 6.20 |

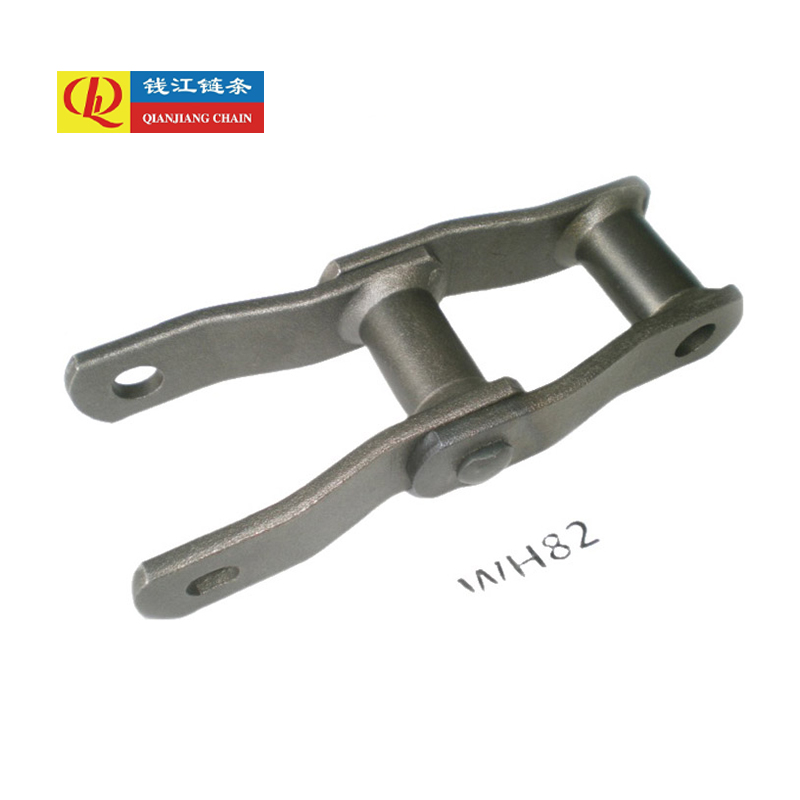

| WH82 | 78.10 | 27.00 | 31.80 | 57.90 | 14.35 | 19.50 | 82.50 | 31.80 | 6.40 | 131.2 | 8.00 |
| WH106 | 152.40 | 31.75 | 41.20 | 70.35 | 19.132 | 105.20 | 108.00 | 38.10 | 9.70 | 224.6 | 10.60 |
| WH110 | 152.40 | 31.75 | 47.75 | 77.00 | 19.13 | 114.30 | 117.30 | 38.10 | 9.70 | 224.6 | 10.40 |
| WH111 | 120.90 | 31.75 | 50.80 | 86.40 | 19.13 | 121.20 | 123.90 | 38.10 | 9.70 | 224.6 | 12.72 |
| WH124 | 101.60 | 31.75 | 38.10 | 70.35 | 19.132 | 105.20 | 108.00 | 38.10 | 9.70 | 224.6 | 12.38 |
| WH132 | 153.67 | 41.15 | 73.15 | 112.30 | 25.48 | 155.75 | 158.75 | 50.80 | 12.70 | 378.1 | 20.00 |
