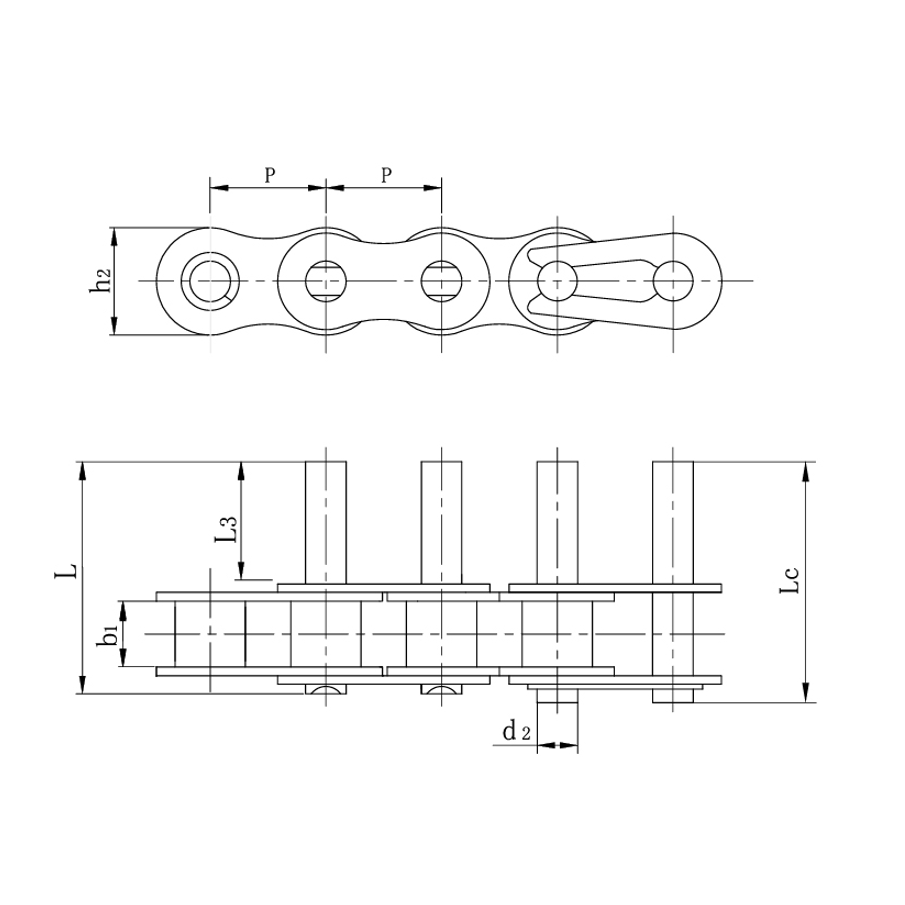

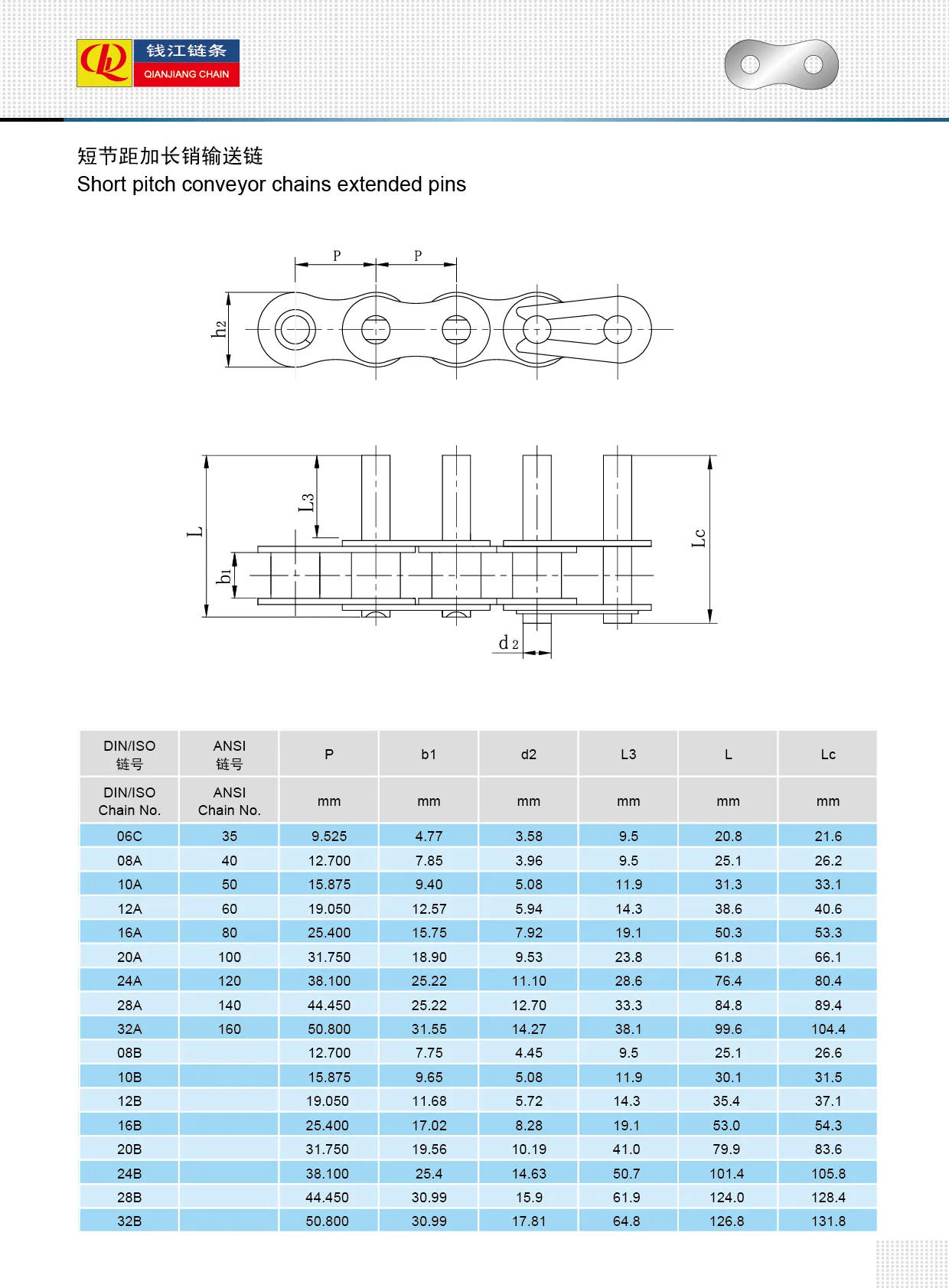

| DIN/ISO 链号 | ANSI 链号 | P | b1 | d2 | L3 | L | Lc |
| mm | mm | mm | mm | mm | mm | ||
| 06C | 35 | 9.525 | 4.77 | 3.58 | 9.5 | 20.8 | 21.6 |
| 08A | 40 | 12.700 | 7.85 | 3.96 | 9.5 | 25.1 | 26.2 |
| 10A | 50 | 15.875 | 9.40 | 5.08 | 11.9 | 31.3 | 33.1 |
| 12A | 60 | 19.050 | 12.57 | 5.94 | 14.3 | 38.6 | 40.6 |
| 16A | 80 | 25.400 | 15.75 | 7.92 | 19.1 | 50.3 | 53.5 |
| 20A | 100 | 31.750 | 18.90 | 9.53 | 23.8 | 61.8 | 66.1 |
| 24A | 120 | 38.100 | 25.22 | 11.10 | 28.6 | 76.4 | 80.4 |
| 28A | 140 | 44.450 | 25.22 | 12.70 | 33.3 | 84.8 | 89.4 |
| 32A | 160 | 50.800 | 31.55 | 14.27 | 38.1 | 99.6 | 104.4 |
| 08B | 12.700 | 7.75 | 4.45 | 9.5 | 25.1 | 26.6 | |
| 10B | 15.875 | 9.65 | 5.08 | 11.9 | 30.1 | 31.5 | |
| 12B | 19.050 | 11.68 | 5.72 | 14.3 | 35.4 | 37.1 | |
| 16B | 25.400 | 17.02 | 8.28 | 19.1 | 53.0 | 54.3 | |
| 20B | 31.750 | 19.56 | 10.19 | 41.0 | 79.9 | 83.6 | |
| 24B | 38.100 | 25.4 | 14.63 | 50.7 | 101.4 | 105.8 | |
| 28B | 44.450 | 30.99 | 15.9 | 61.9 | 124.0 | 128.4 | |
| 32B | 50.800 | 30.99 | 17.81 | 64.8 | 126.8 | 131.8 |
